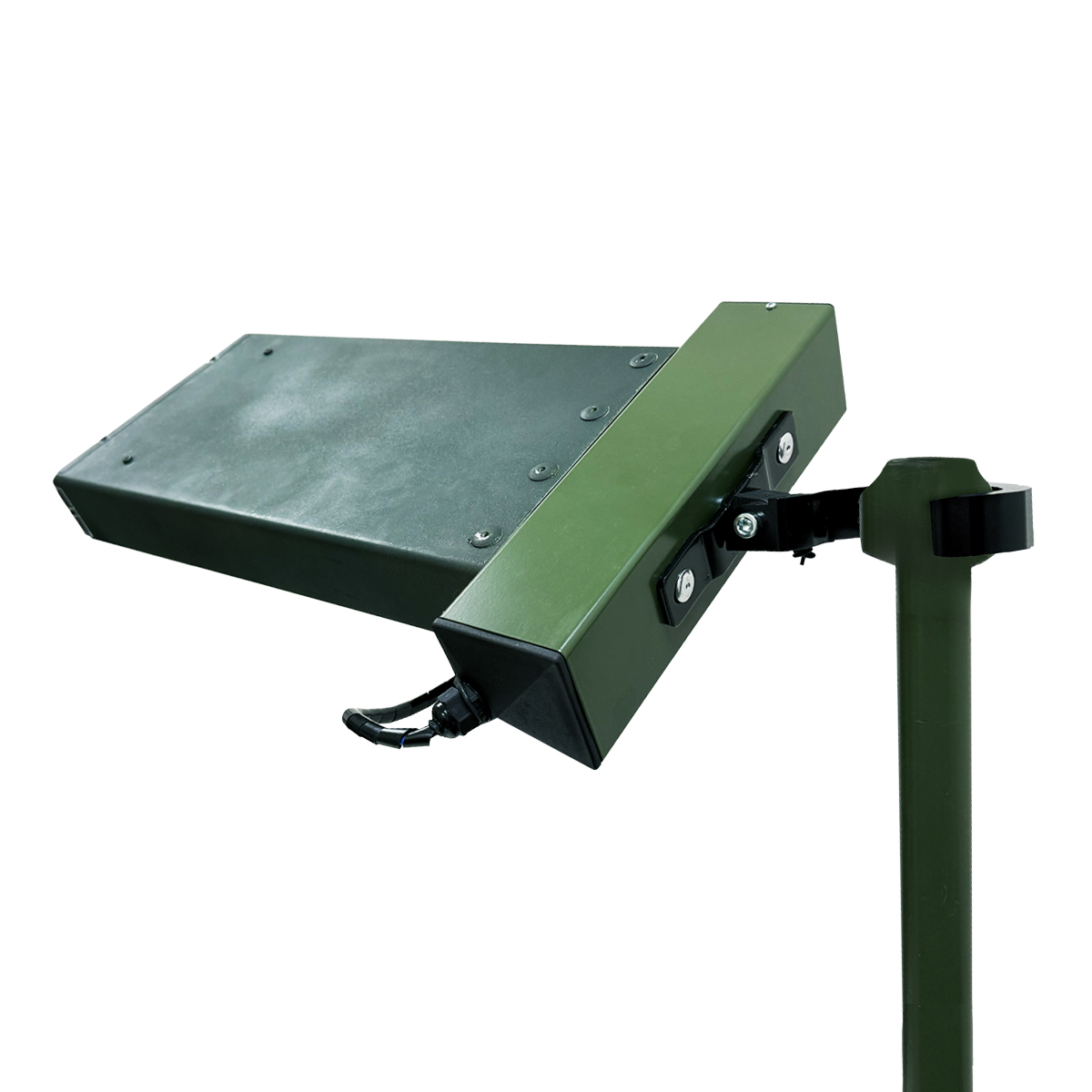

“BORYSLAV” Wideband Analogue Video Detector is a passive system designed to detect and analyse analogue video transmissions used by UAVs and FPV drones across the 700–6000 MHz frequency range.
The system continuously scans the RF spectrum and displays detected analogue video feeds in real time through a secure web interface. Operators can monitor up to 24 video channels simultaneously on a single screen, enabling them to identify and assess multiple active FPV video links from one interface.
Because “BORYSLAV” operates passively, it does not transmit RF signals during detection, reducing the risk of revealing the system’s position.
The detector can be deployed as a standalone system or integrated into a wider electronic warfare (EW) setup. PoE connectivity simplifies installation and allows the detector to be positioned away from the operator with minimal cabling.
Key Capabilities
- Passive detection of analogue UAV video transmissions
- Automatic scanning across the 700–6000 MHz frequency range
- Real-time demodulation and display of analogue video feeds
- Simultaneous monitoring of up to 24 video channels
- Detection frequency grid with captured screenshots
- Live streaming of detected video
- Remote access and control via a secure web interface
- Autonomous operation without continuous operator presence
Detection Performance
| Video transmitter frequency | Estimated detection range* |
|---|---|
| 1.2 GHz | Up to 30 km |
| 3.3 GHz | Up to 20 km |
| 5.8 GHz | Up to 15 km |
*Estimated range with a 2 W transmitter under line-of-sight conditions. Actual detection range may vary depending on terrain, antenna placement, transmitter power, interference and other RF conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| System type | Passive wideband analogue video detector |
| Frequency range | 700–6000 MHz |
| Demodulation | Wideband FM |
| Sensitivity | −90 ± 2 dBm |
| Scan time | <60 s |
| Simultaneous video monitoring | Up to 24 channels |
| Remote access | Secure web interface |
| Protection rating | IP55 |
Power & Physical Specifications
| Parameter | Specification |
|---|---|
| Power supply | 48 V PoE |
| Power consumption | ≤12 W with a 30 m cable |
| Battery operation | ≥6 hours |
| Operating temperature | −33°C to +40°C |
| Net weight | ≤3.8 kg |
| Dimensions (L × W × H) | 530 × 360 × 125 mm |
| Mounting | Compatible with masts rated for loads of at least 5 kg |
Applications
“BORYSLAV” is designed for:
- Detection of UAVs using analogue FPV video links
- Monitoring RF activity in the area of operations
- Identification of frequencies used by hostile UAV video transmitters
- Integration with electronic warfare systems as a detection component
- Protection of fixed positions and critical sites
- Remote monitoring of deployed positions
Passive Operation
“BORYSLAV” operates without transmitting RF signals during detection. This reduces its electromagnetic signature and allows the system to monitor active analogue video links without actively revealing its position.
With remote access and autonomous operation, the detector can be deployed away from the operator and does not require continuous on-site supervision.
Field Experience
During a rotation in the Kharkiv sector, a “BORYSLAV” detector identified a hostile FPV drone transmitting on 3.3 GHz. After assessing the likely flight path, the operator deployed the “STRYI” electronic countermeasure system. The drone was successfully jammed, allowing the rotation to be completed without losses.
Key Advantages
- Passive detection with no RF transmission during operation
- Up to 24 video channels monitored simultaneously
- Detection range of up to 30 km under specified conditions
- Remote operation through a secure web interface
- Low power consumption and battery-powered operation
- Fast deployment with PoE and minimal cabling
- Compact design suitable for mast installation
- Designed for operation in demanding field conditions
- Can operate independently or as part of an integrated EW setup
Warranty & Procurement
The product is covered by a 12-month warranty from the date of commissioning.
“BORYSLAV” has been officially codified and field-tested under combat conditions.
The system is available through Brave1 Market and DOT-Chain Defence, including procurement through the e-points programme.
Need Long-Range FPV Drone Detection?
Tell us about your mission requirements and operating environment. The InLab team can help assess whether “BORYSLAV” is suitable for your deployment, advise on system configuration and integration, and provide information on available procurement options.
